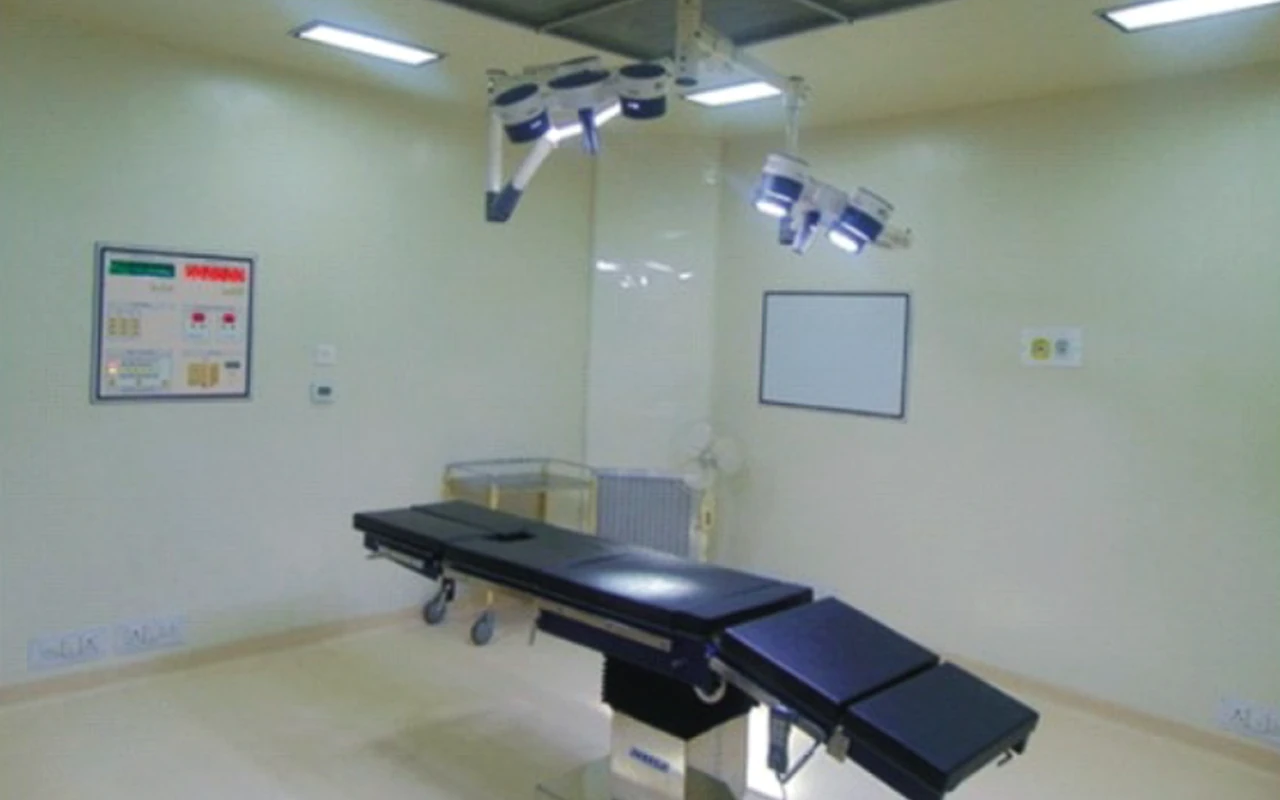

Protected surgical zone
Laminar airflow directs filtered air through the critical operating area.

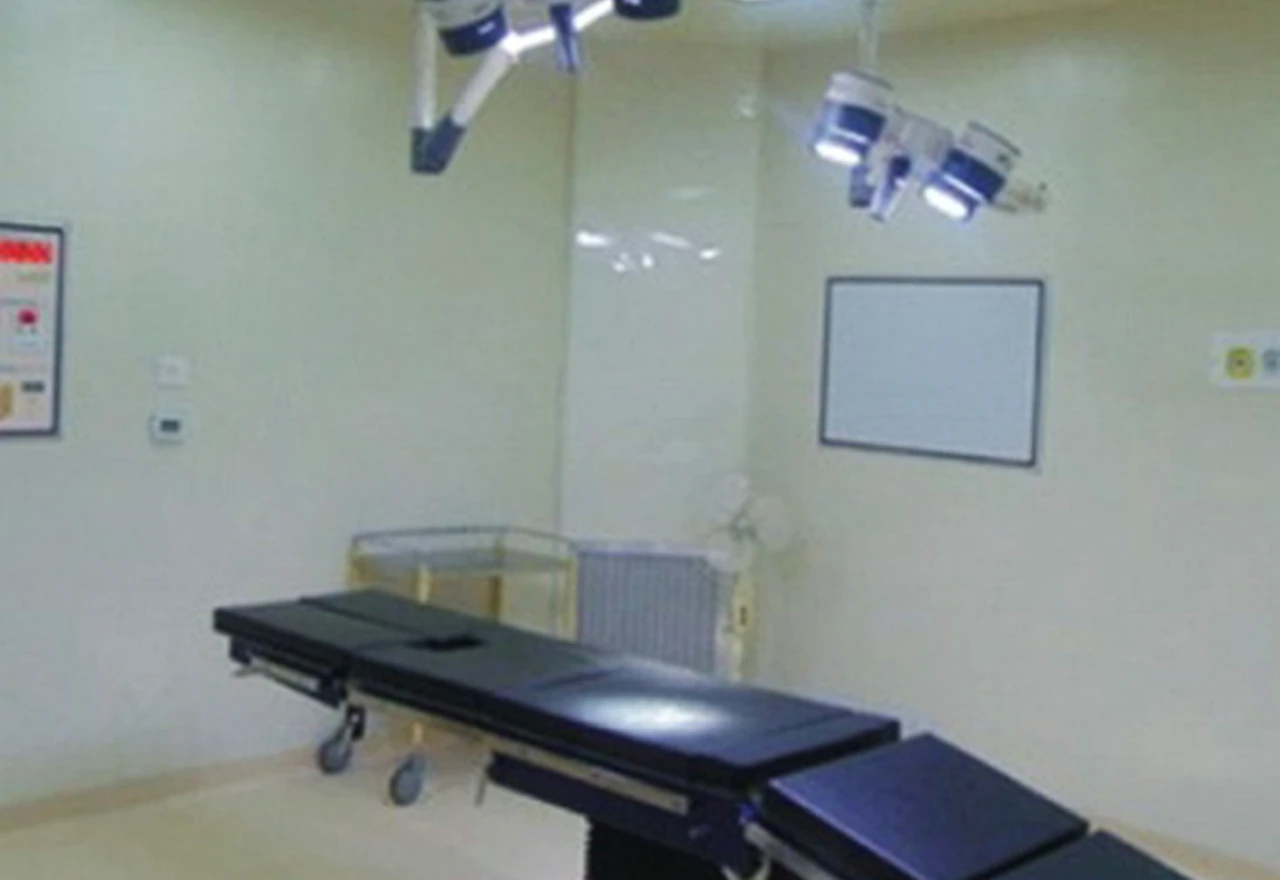

Controlled Surgical Environment
Modular Operation Theatre & Laminar Airflow
Integrated operating-theatre environments combining hygienic construction, HEPA filtration and controlled laminar airflow.
ISO 9001:2015Custom engineeredIndustrial applications
Product rangeTurnkey project configuration
Class 100 & 1000 stated
0.3 micron retention
90 FPM +/- 20% velocity
750-800 illumination
60-65 dB stated noise
Product overview
A complete controlled environment around the surgical field.
A modular operation theatre combines cleanable wall and ceiling construction with HEPA-filtered laminar airflow to protect the surgical field. Air distribution, room pressure and surface detailing work together to reduce airborne contamination risk.
Climate Grip develops the OT layout around surgical workflow and integrates HVAC, filtration, lighting, controls and service interfaces. The source material identifies eye and orthopaedic surgery as applications where controlled clean air is especially important.
Features & benefits
Performance translated into practical value.
The priorities below are specific to this product family and its typical operating environment.
Cleanable enclosure
Non-porous modular wall and ceiling surfaces support hygiene and routine disinfection.
Integrated services
HVAC, lighting, electrical and medical-gas interfaces are coordinated within the room system.
Project-specific layout
Theatre dimensions and support spaces can be configured around clinical workflow.
Construction
How the system is built.
Construction details are grouped by function so casing, airside components and maintenance provisions remain easy to evaluate.
Room envelope
- Antimicrobial non-porous wall panels
- Sealed modular ceiling system
- Flush cleanable interfaces
- Coordinated doors and viewing panels
Critical air system

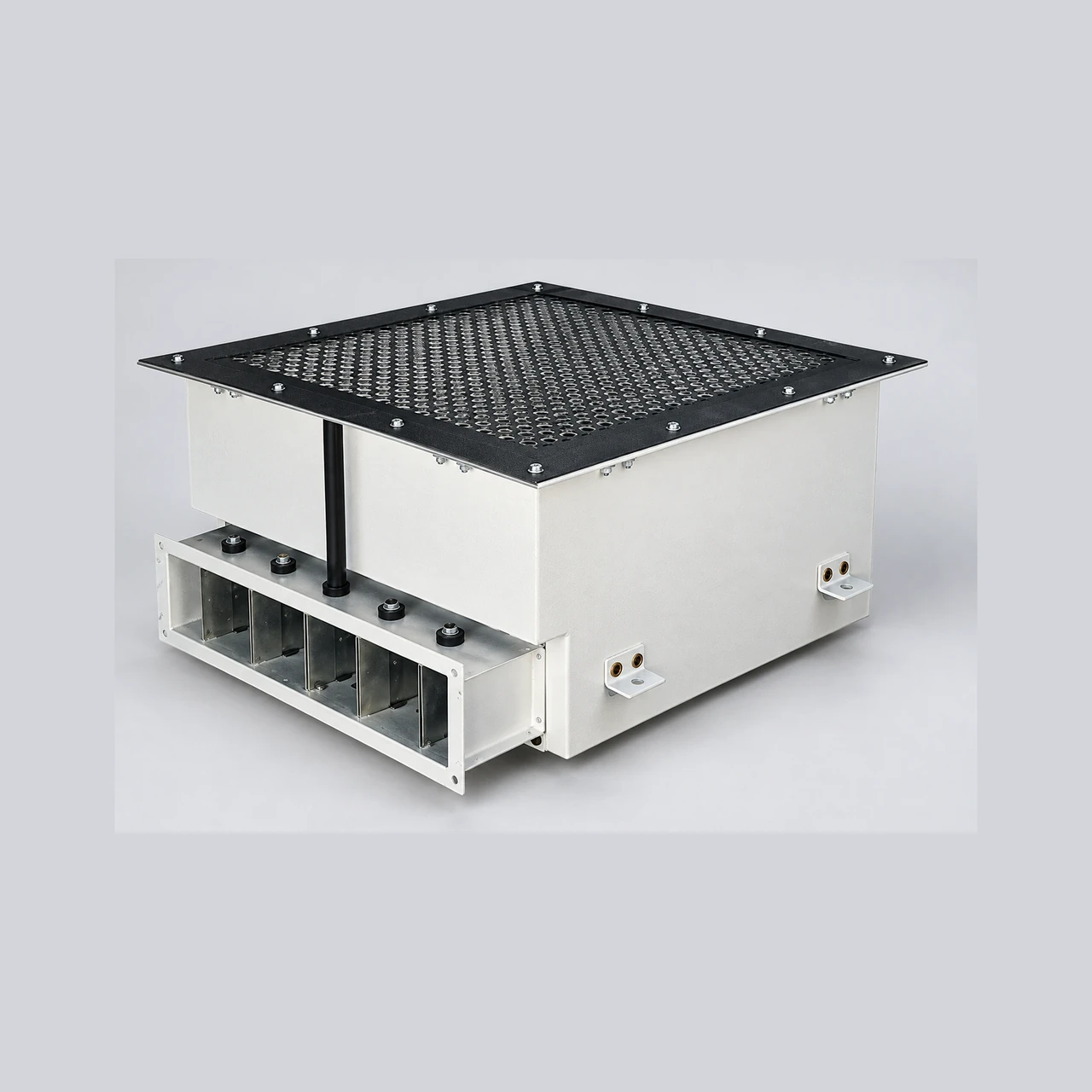

- HEPA-filtered laminar airflow canopy
- Controlled room-pressure arrangement
- Air-return coordination
- Integrated monitoring and controls
Technical specifications
Source-supported product data.
Final selections and dimensions are confirmed against project duty, approved drawings and site conditions.
| Technical item | Source specification |
|---|---|
| Cleanliness | Class 100 & 1000 |
| Particle retention | 0.3 micron |
| Air velocity | 90 FPM +/- 20% |
| Illumination | 750-800 lumen |
| Noise level | 60-65 decibels |
| Standard | ISO-14664 (as stated in source material) |
Where this product performs.
Orthopaedic surgery
Eye surgery
General operating theatres
Specialty hospitals
Surgical centres
Healthcare expansions
Custom HVAC engineering
Need a system configured for your facility?
Our engineering team can help define the right airflow, filtration, construction and control arrangement.
