Improved indoor air quality
Continuous filtered outdoor air dilutes indoor contaminants and supports healthier occupied spaces.
Dedicated Outdoor Air

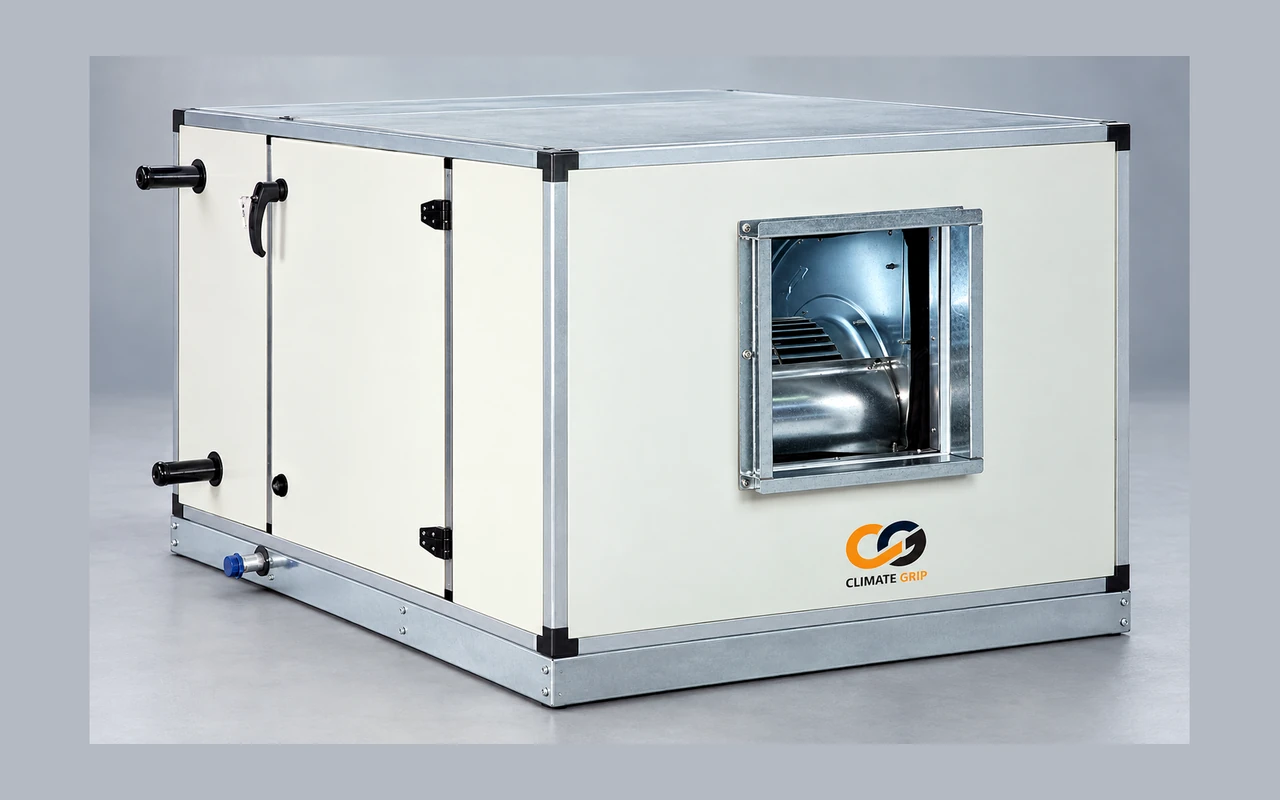

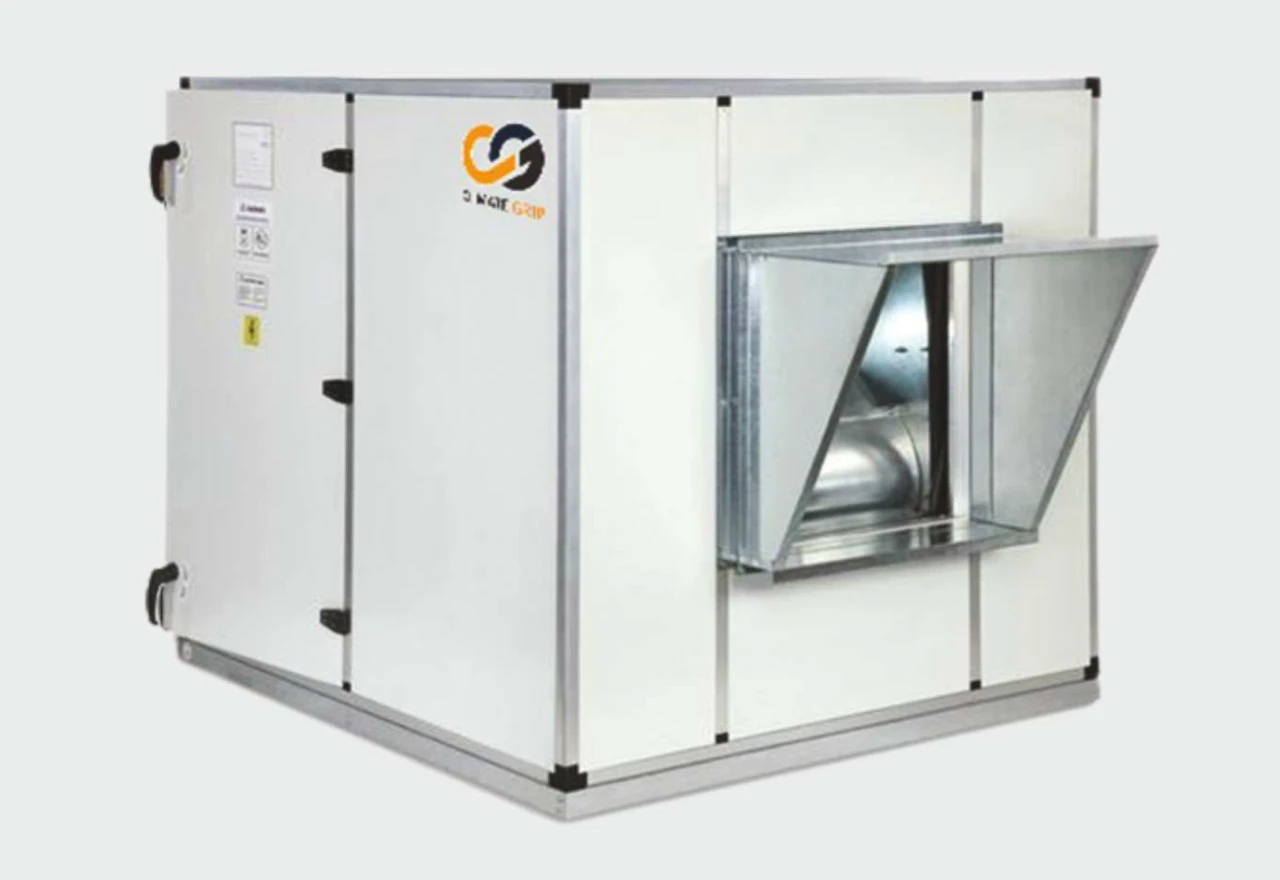

Fresh Air Ventilation Unit
Purpose-built ventilation units that introduce clean, filtered outdoor air while supporting comfort and energy-conscious operation.
ISO 9001:2015Custom engineeredIndustrial applications
Product rangeApplication-sized airflow
Continuous filtered fresh air
45 +/- 2 mm PUF panel
Thermal-break profile
EC fan options
Heat-recovery option
Product overview
Outdoor air treated for the building it serves.
A fresh air ventilation unit supplies outdoor air to occupied or process spaces that require controlled ventilation. Filtration removes outdoor contaminants, while optional heating, cooling and recovery stages temper the air before distribution.

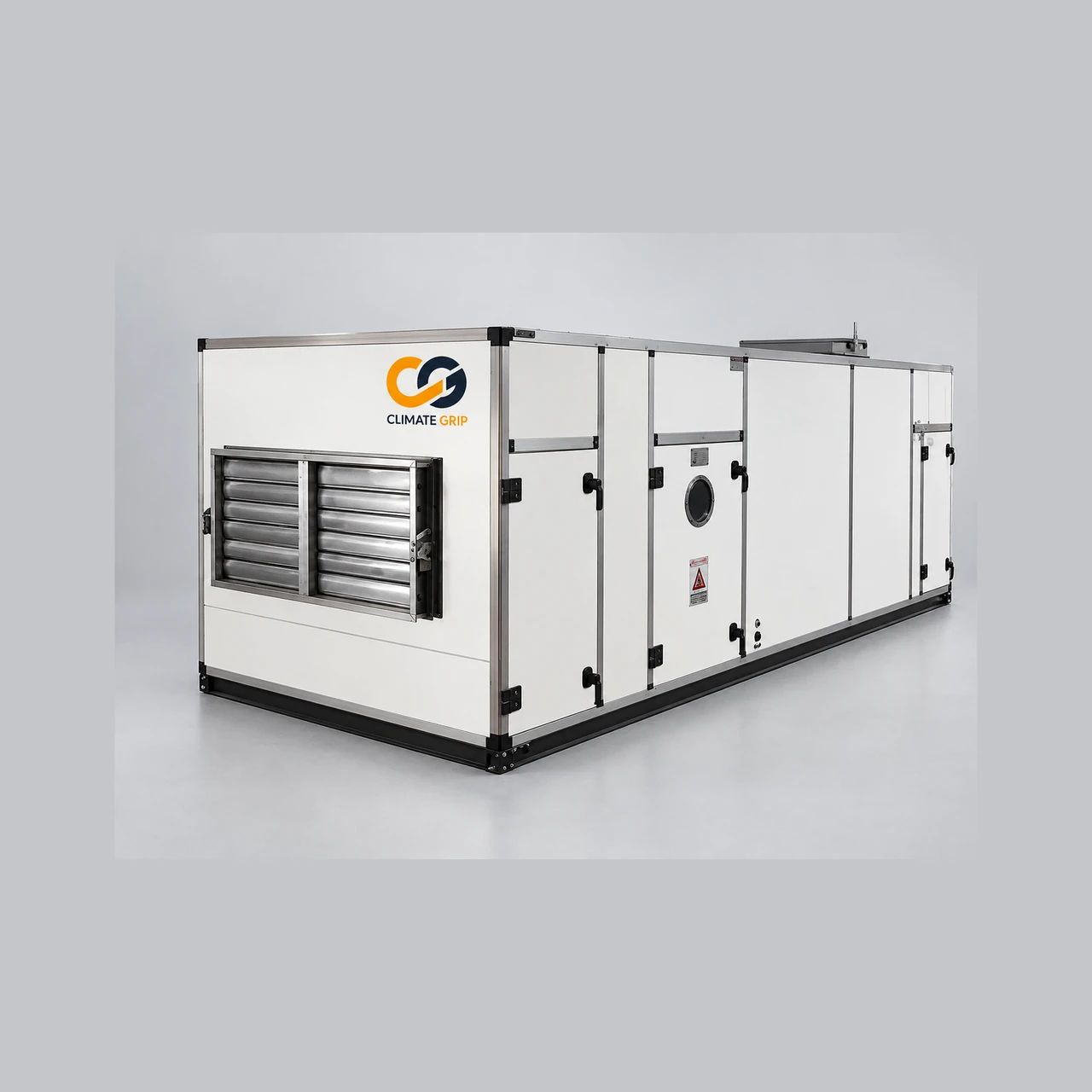

The unit is selected independently from the floor-mounted air-washer range. Its purpose is controlled outdoor-air delivery for buildings such as offices, hospitals, schools and commercial facilities.
Features & benefits
Performance translated into practical value.
The priorities below are specific to this product family and its typical operating environment.
Controlled ventilation
Fan and control selection maintains the required outdoor-air quantity instead of uncontrolled infiltration.
Energy-conscious operation
EC fan and optional heat-recovery arrangements can reduce the ventilation energy requirement.
Weather-ready construction
Canopy and thermal-break casing options support demanding outdoor-air conditions.
Construction
How the system is built.
Construction details are grouped by function so casing, airside components and maintenance provisions remain easy to evaluate.
Casing
- 45 +/- 2 mm PUF panel option
- Thermal-break profile construction
- Accessible filter and fan sections
- Weather-canopy option
Air movement
- EC plenum fan option
- EC DIDW backward fan option
- Controlled fresh-air intake
- Ducted supply connection
Technical specifications
Source-supported product data.
Final selections and dimensions are confirmed against project duty, approved drawings and site conditions.
| Design parameter | Available arrangement |
|---|---|
| Panel | 45 +/- 2 mm PUF |
| Profile | Thermal-break construction |
| Fan options | EC plenum or EC DIDW backward fan |
| Air treatment | Filtration with optional heating/cooling |
| Efficiency option | Heat recovery |
| Protection option | Weather canopy |
Where this product performs.
Offices
Hospitals
Schools
Commercial buildings
Healthcare facilities
Controlled industrial spaces
Custom HVAC engineering
Need a system configured for your facility?
Our engineering team can help define the right airflow, filtration, construction and control arrangement.
