Space-efficient profile
Low-height construction makes productive use of constrained ceiling voids.
Compact Ducted Air Conditioning

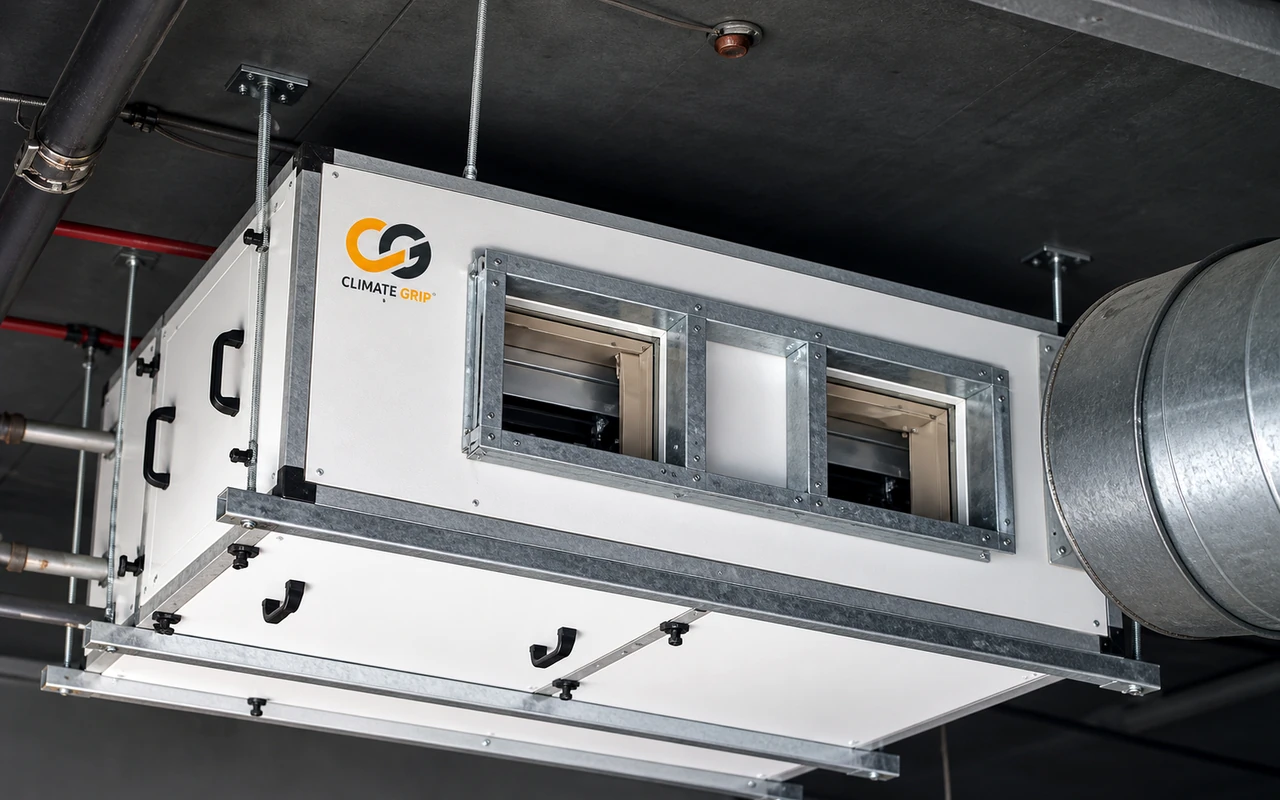

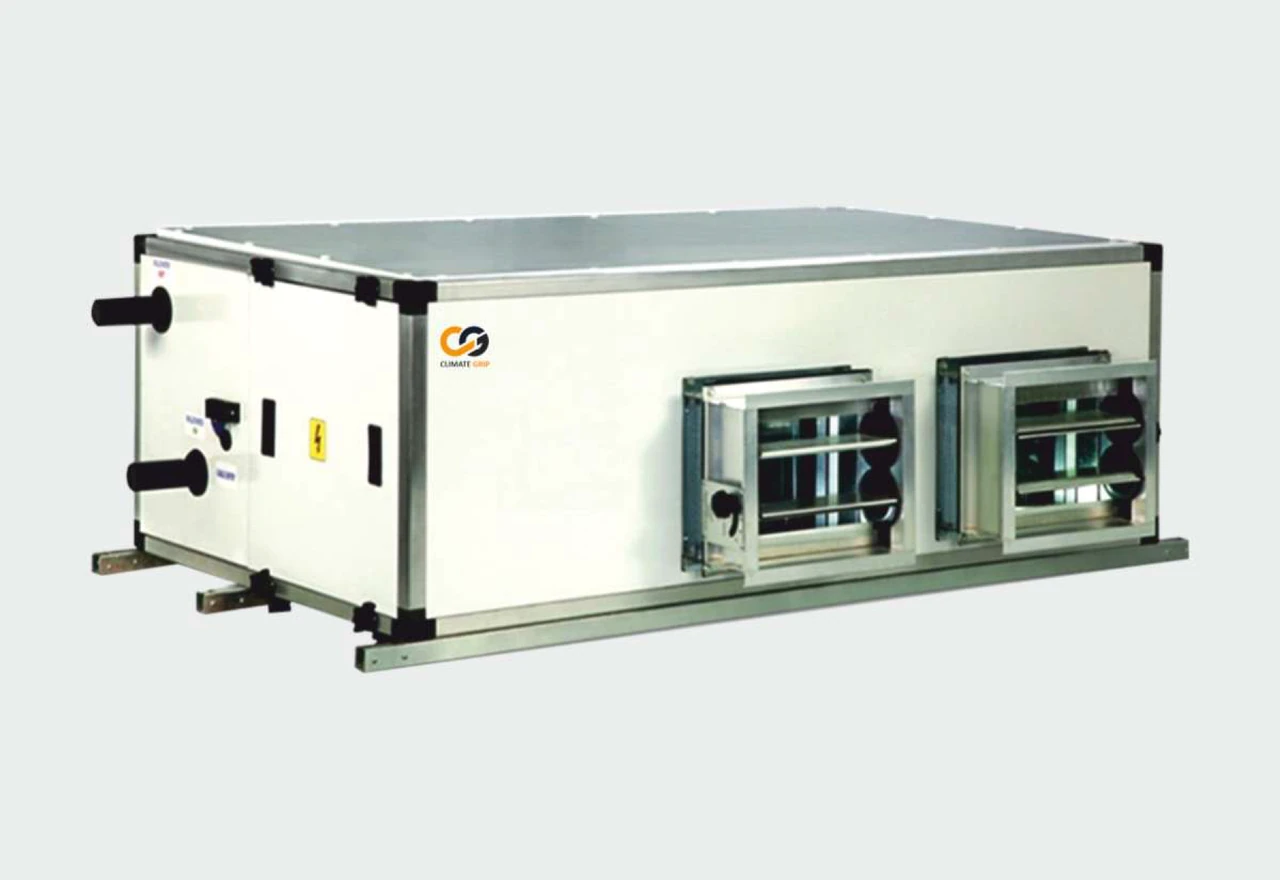

Ceiling Suspended Unit
Low-height, concealed air-conditioning units for efficient cooling, heating and ventilation where ceiling space is limited.
ISO 9001:2015Custom engineeredIndustrial applications
Product range1,000-12,000 CFM
Low-height casing
Quiet operation
Three-speed option
Closed-cell insulation
Accessible maintenance
Product overview
Full airside performance within restricted ceiling space.
Ceiling suspended units place filtration, cooling coil and fan components above the occupied space, preserving usable floor area. Their low-profile configuration is suited to false ceilings in commercial, clinical and hospitality environments.
Direct-driven and ductable arrangements provide controlled air delivery with low operational noise. The cooling coil, fan speed, casing skin and controller can be selected to match the room load and installation constraints.
Features & benefits
Performance translated into practical value.
The priorities below are specific to this product family and its typical operating environment.
Quiet air delivery
Imported DIDW forward-curved centrifugal fans support low-noise operation.
Load-responsive airflow
A three-speed drive can match fan output to cooling demand and comfort needs.
Condensation protection
Closed-cell thermal lining helps prevent sweating above the false ceiling.
Construction
How the system is built.
Construction details are grouped by function so casing, airside components and maintenance provisions remain easy to evaluate.
Casing
- Powder-coated GI construction
- Closed-cell internal insulation
- Plain GI, stainless steel or aluminium inner skin
- Serviceable access arrangement
Airside assembly
- 10-micron box filter
- Six-row cooling coil
- Direct-driven fan and motor
- Controller with on/off and fan-speed control
Technical specifications
Source-supported product data.
Final selections and dimensions are confirmed against project duty, approved drawings and site conditions.
| Model | Air volume (CFM) | L (mm) | W (mm) | H (mm) | Fan | Motor HP |
|---|---|---|---|---|---|---|
| DCS-010 | 1,000 | 900 | 900 | 575 | KAT 09/07 S | 0.7 |
| DCS-015 | 1,500 | 950 | 900 | 575 | KAT 10/08 S | 1 |
| DCS-020 | 2,000 | 1,100 | 1,200 | 575 | KAT 10-10 S | 1.5 |
| DCS-030 | 3,000 | 1,150 | 1,650 | 575 | KAT 10-08 S2 | 2 |
| DCS-040 | 4,500 | 1,200 | 2,150 | 750 | KAT 12-09 S2 | 3 |
| DCS-060 | 6,000 | 1,300 | 2,200 | 850 | KAT 15-11 S2 | 3 |
| DCS-080 | 8,000 | 1,500 | 2,600 | 850 | KAT 15-15 S2 | 5 |
| DCS-100 | 10,000 | 1,500 | 2,800 | 950 | KAT 18-18 S2 | 7.5 |
| DCS-120 | 12,000 | 1,500 | 3,000 | 1,000 | KAT 18-18 S2 | 7.5 |
Where this product performs.
Offices
Retail environments
Clinics & hospitals
Hotels
Educational buildings
Commercial facilities
Custom HVAC engineering
Need a system configured for your facility?
Our engineering team can help define the right airflow, filtration, construction and control arrangement.
