Low-leakage control
Silicone rubber blade seals help reduce bypass air when the damper is closed.
Airflow Regulation

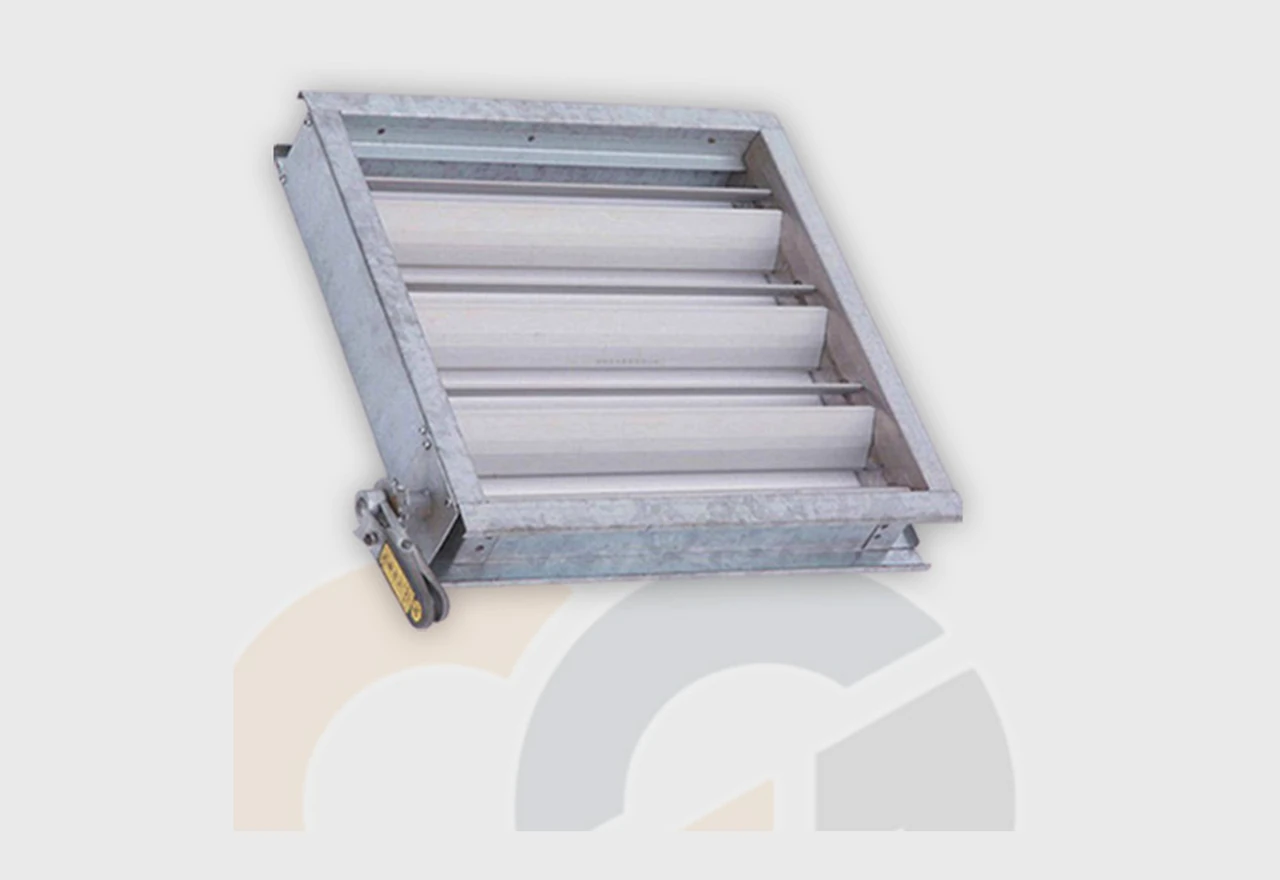

Aluminium Volume Control Damper
Low-leakage aluminium dampers for balancing, isolation and controlled modulation in HVAC air-distribution systems.
ISO 9001:2015Custom engineeredIndustrial applications
Product rangeManual or motorized
Aluminium blade construction
Ultra-low leakage seal
Manual or motorized
Factory actuator option
Easy installation
Product overview
Precise airflow control in a compact assembly.
A volume control damper regulates the quantity of air passing through an AHU opening or duct branch. Blade geometry, seals, linkage and actuator selection determine how accurately it can balance or isolate the airstream.
Climate Grip aluminium dampers are intended for low- to medium-pressure and velocity systems. Manual, electric and pneumatic operating arrangements allow the same robust product family to support balancing, bypass and automated control duties.
Features & benefits
Performance translated into practical value.
The priorities below are specific to this product family and its typical operating environment.
Flexible actuation
Hand-quadrant, electric and pneumatic operating options suit manual and automated systems.
Stable blade linkage
Linked blades provide coordinated movement across the full damper opening.
Accessible maintenance
A straightforward frame and drive arrangement supports installation, adjustment and servicing.
Construction
How the system is built.
Construction details are grouped by function so casing, airside components and maintenance provisions remain easy to evaluate.

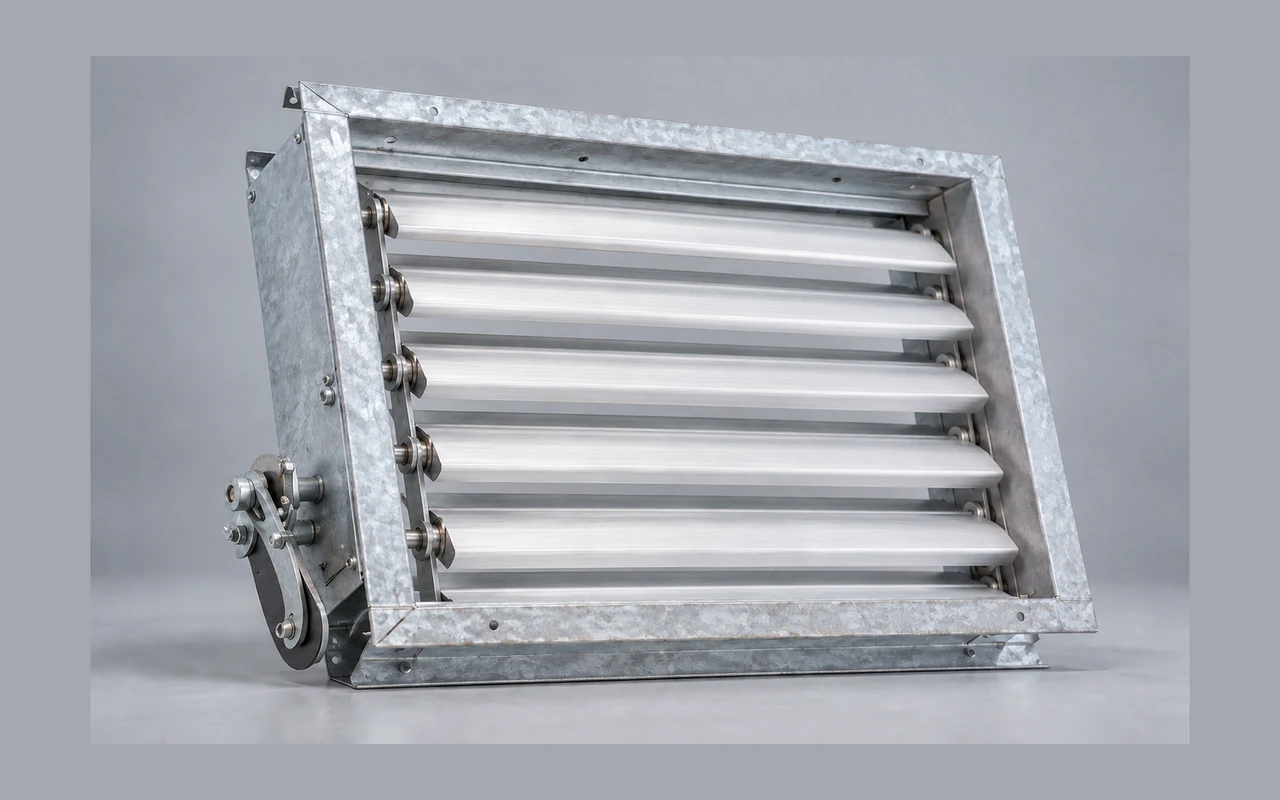

Frame & blades
- Extruded aluminium frame
- Aluminium aerofoil blades
- Silicone rubber blade seals
- Low-friction bearing arrangement
Operating mechanism
- Linked blade drive
- Hand quadrant option
- Factory-installed actuator option
- Position-switch provision
Technical specifications
Source-supported product data.
Final selections and dimensions are confirmed against project duty, approved drawings and site conditions.
| Design parameter | Available arrangement |
|---|---|
| Material | Aluminium frame and blades |
| System duty | Low to medium pressure and velocity |
| Leakage control | Silicone rubber blade seal |
| Operation | Hand quadrant or actuator |
| Actuator types | Electric or pneumatic |
Where this product performs.
AHU assemblies
Fresh-air systems
Exhaust networks
Mixing boxes
Cleanroom ductwork
Commercial HVAC
Custom HVAC engineering
Need a system configured for your facility?
Our engineering team can help define the right airflow, filtration, construction and control arrangement.
