Heavy-duty casing
Extruded aluminium framing and pressure-injected PUF panels provide a rigid, insulated enclosure.
Air Treatment & Distribution

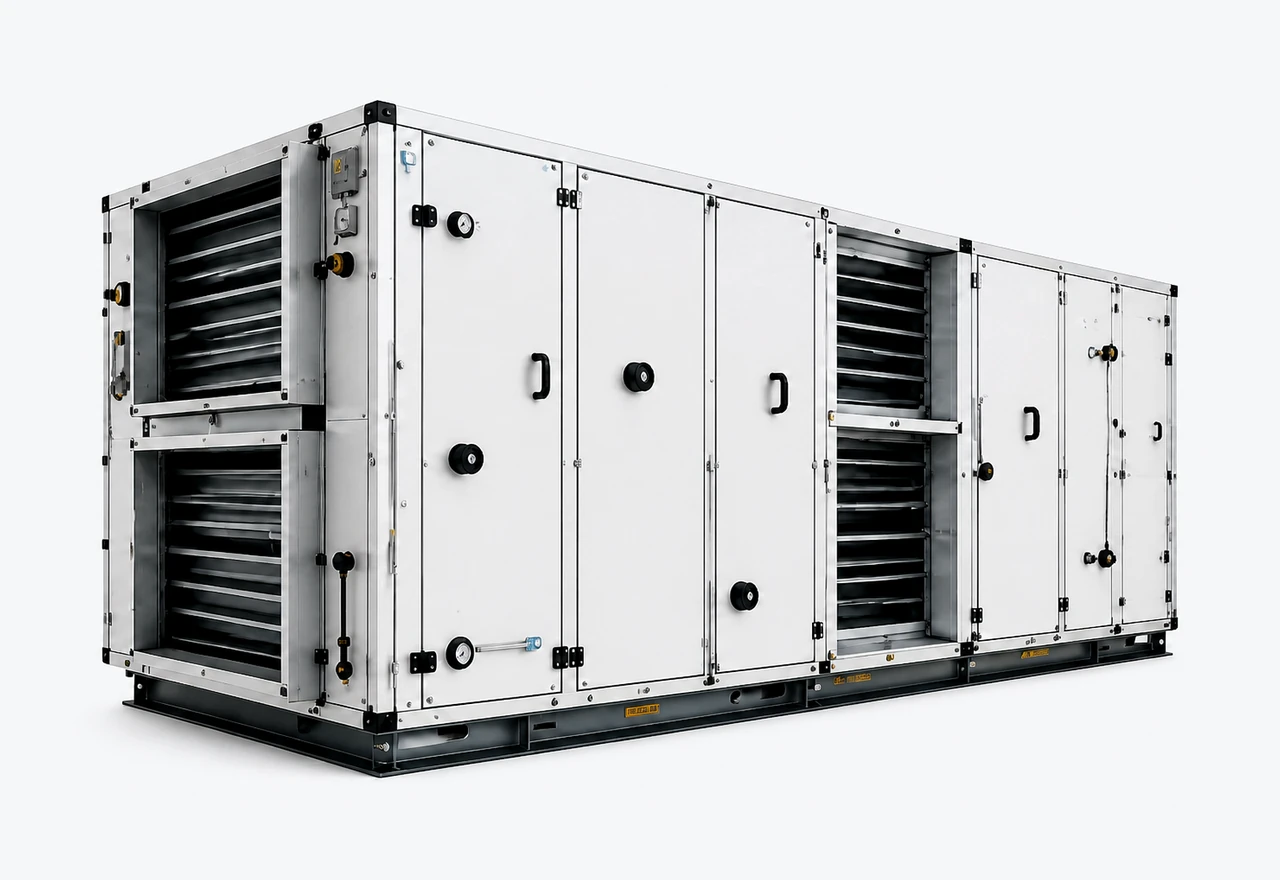

Air Handling Unit (AHU)
Custom-engineered air handling systems for precise filtration, temperature, humidity and airflow control in demanding facilities.
ISO 9001:2015Custom engineeredIndustrial applications
Product rangeCustom engineered
25 or 50 mm PUF panels
Single or double tier
Custom filtration stages
Energy recovery options
Controls and automation
Product overview
Engineered from the casing inward.
An air handling unit is the central air-treatment component of an HVAC system. It draws in outdoor and return air, filters and conditions the airstream, then distributes it at the temperature, humidity and pressure required by the facility.
Climate Grip configures each AHU around the project duty rather than a fixed catalogue arrangement. Air quantity, static pressure, filtration, coil duty, casing material, acoustic requirements and service access are resolved together for reliable operation.
Features & benefits
Performance translated into practical value.
The priorities below are specific to this product family and its typical operating environment.
Efficient air movement
AMCA-certified DWDI and plug fan options are selected to suit airflow and system resistance.
Hygienic management
Smooth internal surfaces, airtight doors and a dual-slope SS-304 drain pan support inspection and cleaning.
Serviceable design
Modular sections and accessible components simplify filter changes, inspection and planned maintenance.
Construction
How the system is built.
Construction details are grouped by function so casing, airside components and maintenance provisions remain easy to evaluate.
Casing & panels
- Heavy-duty extruded aluminium profile
- Thermal-break and internal coving options
- 25 or 50 mm pressure-injected PUF panels
- PUF density 38/40 kg/m3
Airside components
- Forward or backward-curved blower selection
- SS-304 dual-slope drain pan
- Galvanized steel base frame with lifting arrangement
- Airtight access doors with die-cast or nylon hardware
Technical specifications
Source-supported product data.
Final selections and dimensions are confirmed against project duty, approved drawings and site conditions.
| Attribute | Available specification |
|---|---|
| Panel thickness | 25 mm or 50 mm |
| PUF density | 38/40 kg/m3 |
| Construction | Single tier or double tier |
| Drain pan | SS-304, dual slope |
| Fan arrangements | DWDI or plug type; forward/backward curved |
| Filter options | EU-5 and EU-7 rigid or bag type |
Where this product performs.
Pharmaceutical & cleanrooms
Hospitals & healthcare
Food processing
Industrial manufacturing
Commercial facilities
Laboratories
Custom HVAC engineering
Need a system configured for your facility?
Our engineering team can help define the right airflow, filtration, construction and control arrangement.
